Proximity RFID Reader Mifare MF7

Card Reader Mifare MF7 1
Vraag offerte voor een persoonlijke prijs

CORONA? Wij zijn open! Extra Corona info -->

We leveren met UPS waar dit nog mogelijk is.
Info? Bel ons, laat u bellen of stuur een bericht.

Wij bellen u terug

Terug

Een antwoord via email

Terug

Offerte aanvragen

Ja, stuur mij vrijblijvend een offerte voor Proximity RFID Reader Mifare MF7.

Terug

Offerte aanvragen

Vraag offerte voor een persoonlijke prijs
Vragen of problemen? Bel onze advieslijn! +32(0)15-243744

Meer informatie

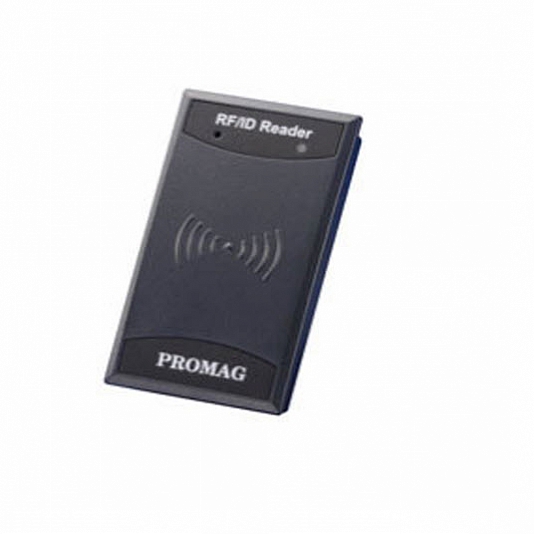

The MF7 is a very high performance proximity reader. This well-designed reader is packed with technical features that have medium range capability and a small footprint. The MF7 reader is the best choice for system integrators because of its wide range of power inputs (between 5V to 18V DC). Even at 5 Volts (DC), the MF7 features a good reading range. The MF7 reader also comes with a variety of Three-In-One interface, RS-232, MSR ABA TK2 and Wiegand interfaces allowing it to integrate with a variety of applications, especially security access control.

Features

l Contactless reading.
l Reading distance: up to 50mm
l Frequency: 13.56 MHz
l Read Mifare UltraLight and MF1 Standard cards
l Three -In -One interface, with Wiegand, MSR ABA TK2 and RS232 interfaces
l Fast data transfer
l Weather resistant
l High data integrity
l True anticollision
l User convenience
l Easy to install
l Available installed on metal surface
l Unique design


Specifications

Electrical
Power Requirements:5~18 Volts regulated DC at 200 mA typical. A linear regulator is recommended.
Interface:
Wiegand
MSR ABA Track2
RS232
Or special customized specifications.
Interface Cable - 90 cm
Read Mifare MF1 standard cards for 1204/4096 byte and Mifare UltraLight cards of EEPROM size 512bit for ISO 14443A
Typical Maximum reading distance:Up to 50mm at 5~12V with Mifare card In ideal conditions.
Operating frequency: 13.56MHz standard
Read Only for Unique Serial Number / Unique Identifier ISO/IEC 14443 Type A
External control Audio / Visual Indication: Internal LED and Buzzer

Technische details

Dimensies HxBxL (mm) 15x43x78
Environment -10 - 60 C
ABS
